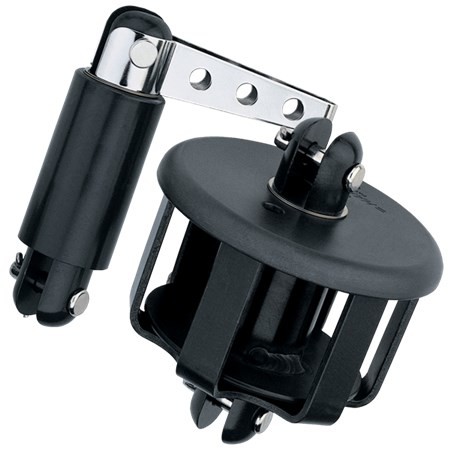

Harken® Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit.
An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay.
Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.
Pin-to-pin length (mm) 102 mm
Drum Ø (mm) 106 mm
Maximum line Ø (mm) 6 mm
Jaw width (mm) 10 mm
Maximum luff wire Ø (mm) 5 mm
Clevis pin Ø (mm) 7.9 mm
Weight (g) 646 g
Maximum working load (kg) 907 kg
Boat length - monohull (m) 6.1 - 7.6 m
Boat length - multihull (m) 5.5 - 7 m
Includes upper swivel 207
Includes drum 208
Includes drum and upper swivel.
Does not include hoistable swivel.
