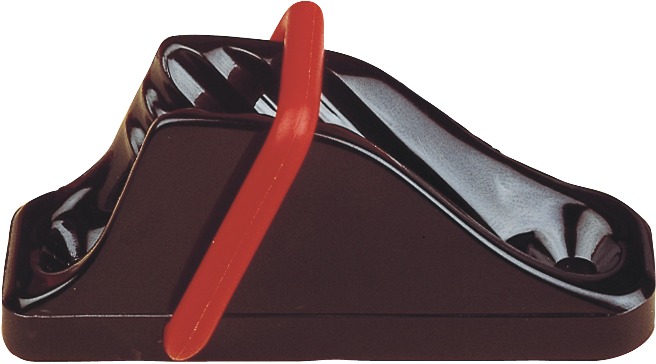

When using the Clamcleat® CL237, the red gate is flipped up by hand to keep the rope out of the nylon cleat and prevent unintentional entry of the rope into the cleat.
The CL237 is a modified CL201. Spare Gates are available as PT238GATE. Usng a CL804 Tapered Pad can aid rope alignment. Also available in Aluminium - see CL238 below. A larger version is the CL239.
Technical Details
Rope Diameter 6 - 12mm
Material Nylon
Hole Centres 72mm
Length 96mm
Width 40mm
Height 35mm
Bolt Size M6
Screw Size 6.3
Weight 47gms
