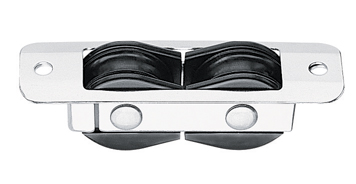

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications.
Sheave Ø (mm) 29 mm
Length (mm) 95 mm
Weight (g) 60 g
Maximum line Ø (mm) 8 mm
Fasteners (mm) 5 RH mm
Mounting hole spacing (mm) 79 mm
Cutout (mm) 19 x 67 mm
Maximum working load (kg) 181 kg
Breaking load (kg) 907 kg
