Sheave Ø 15 mm
Max. Rope Ø 5 mm
Max. Cable Ø mm
Pin Ø mm
M.W.L. 120 kg
B. L. 550 kg
Weight 7 g
Features
Smallest and lightest ball bearing block available
Precision moulded acetal sheave running on stainless steel ball bearings provide high performance & low friction

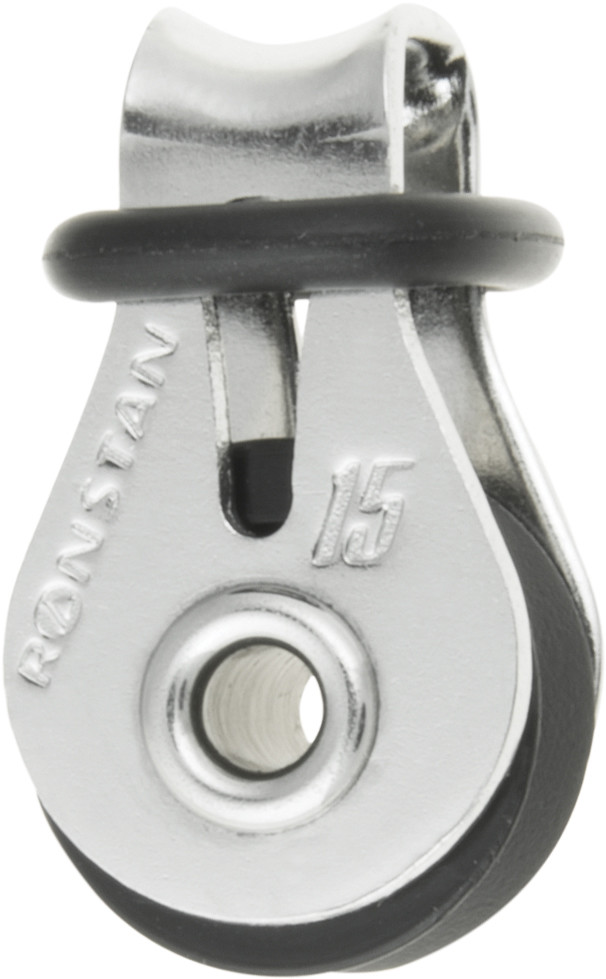

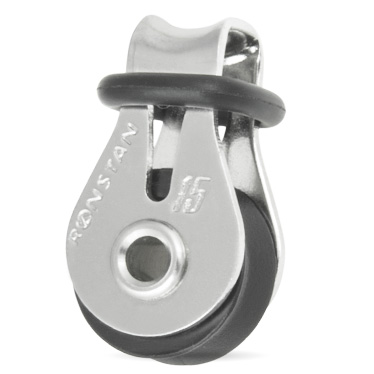

Single loop head blocks include an O-ring to separate running line from head lashing or fixing
Applications
Dinghy control lines
Vangs, cunninghams and tweakers
Shock cord tensioning systems
Materials
BB sheaves: UV stabilised acetal
Ball bearings: Stainless steel
Cheeks: Grade 316 stainless steel
