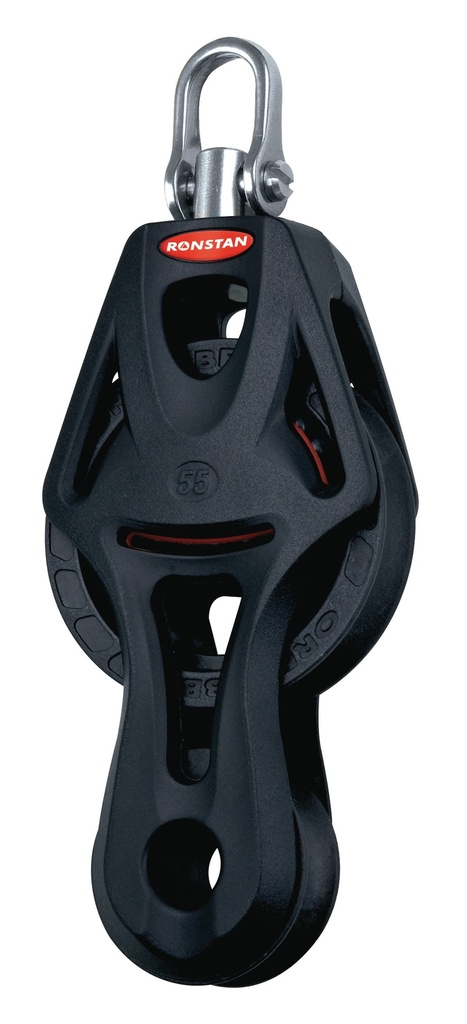

Block single Orbit fiddle with shackle, swivel head and becket 55mm

Ronstan

Article number :  RF55510

https://duvoisin-nautique-et-sports.odoo.com/web/image/product.template/345710/image_1920?unique=ca1cbd3

54.58 CHF 54.58 CHF 54.58 CHF

59.00 CHF

Contact us for more details

    This combination does not exist.

    RF55510

    Sheave Ø 55 + 35 mm
    Max. Rope Ø 10 mm
    Max. Cable Ø mm
    Pin Ø 5 mm
    M.W.L. 500kg
    B. L. 1000kg
    Weight 101g

    Features
    Ultra Lightweight
    Low friction 2-stage Orbital ball bearing system
    Highest working load in its class
    Low profile and compact
    High performance cleating

    Product Information
    Lightweight
    Kilogram for kilogram of working load, BB and RT Orbit Blocks are the world’s lightest. The unique orbital design allows the bearing to only be in the active areas of the floating sheave. This minimises the mass of the inactive return race and hub.
    Weight and bulk are further reduced in the different block configurations. The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible.
    Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. This gives a 30% weight saving advantage over the nearest competitor. Other brands just link together their single blocks. This results in unnecessary double cheeks between each sheave, held together by a heavy steel channel across the top of the block.
    Highest working load in its class
    The orbital ball-bearing arrangement gives the largest possible bearing race diameter. This maximises load performance. The proven Ronstan 2-stage bearing system features high compression grade acetal ball bearings and a secondary full-contact bearing. This gives minimum friction across the full working load range.

    The floating sheave and bearing system is supported by a fibre-reinforced load frame. The design was computer modelled to be stress optimised. The Dyneema® Link is produced from FSE Robline SK75 fibre, which is 10 times stronger and lighter than steel, and provides the final connection from the block to the load point.

    Applications
    Mainsheet systems on dinghies, sportsboats and small keelboats to 9m (30ft)
    Halyard, Vang and Backstay application on boats to 8m (26ft)
    Control line applications on larger yachts

    Materials
    Ball bearings - High compression strength carbon black Acetal
    Stage 2 bearing - Carbon fibre reinforced, PTFE impregnated Nylon
    Frame/Cheeks - Toughened, glass fibre reinforced Nylon
    Rope Link: UV stabilised, multi-strand impregmented SK75 Dyneema®
