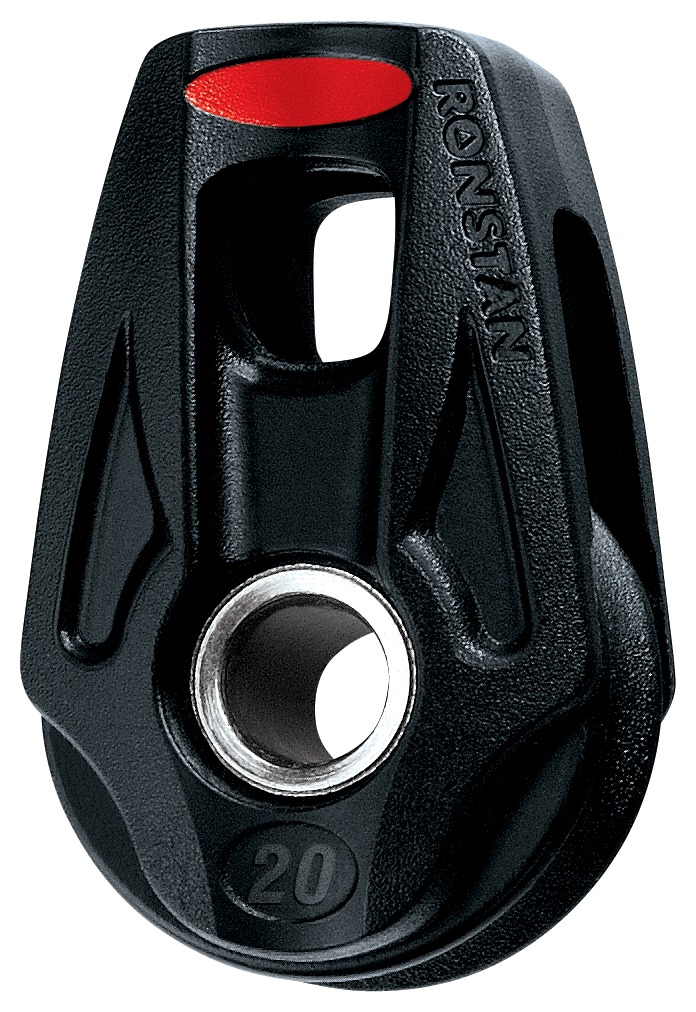

Block single Orbit with Dyneema lashing, cket option to strap 20mm

Sheave Ø 20 mm
Max. Rope Ø 6 mm
Max. Cable Ø mm
Pin Ø - mm
M.W.L. 250 kg
B. L. 550 kg
Weight 9 g

Features
Integrated stainless steel hub to accept lashing attachment and through-sheave becket
Suits up to 4mm lashing
Includes 750 mm x 1.7mm diam lashing cord

Product Information
.
The incredible Series 20 Orbit Block is capable of loads up to 250kg (550lb) while weighing a mere 9 grams. It’s so light that it needs to be lashed down!
Series 20 BB Orbit Block Lashing Head User Instructions


N.B. Block must be lashed through hub. M.W.L. & B.L. are dependent on the strength of lashing. Knots, splices, stitching will generally have a lower B.L. than the line itself.


Applications
Leech / control lines
Cunninghams

Materials
Sheave: high compression strength carbon black Acetal
Frame:/Cheeks: Toughened, glass fibre reinforced Nylon
Load straps and ball bearings: Grade 316 stainless steel
